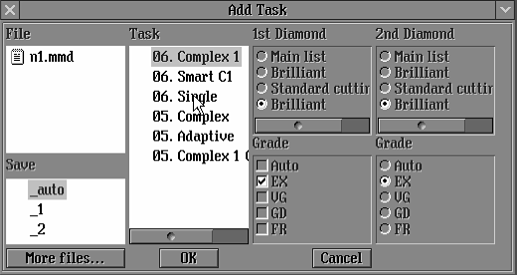

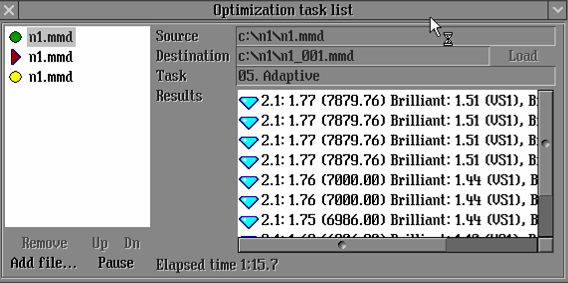

previous   top   next Auto optimization Benefits Offline optimization task and saving of results on completion Queuing of optimization task and auto shifting of completed projects in another folder Optimization of a stone on different algorithm at a time Different stone planning queue wise 1. Click on Start / Main / Optimization task list... to open the Optimization task list panel. 2. To add mmd files click on Add file 3. Select your .mmd file from the related folder and press button Open 4. Add Task panel opens 5. In the Add Task panel select an optimization method, shapes & cut grade. 6. Suppose (i.e.) you select _auto in Save option, then n1.mmd will automatically save as n1_001.mmd and if you select _1,_2, then software will automatically save as n1_1.mmd. 7. If you want to Optimize your another .mmd as above mention method then select by clicking more files button. 8. Press OK button and the program will automatically start optimization. NOTE: * Green indicator shows that process is over. * Red indicator shows that Process is running & * Yellow indicator shows that process is pending in queue.. If you want to see optimization result then click on green button and you can load this project by pressing on Load button. Note. Solutions ID are available in the Optimization task list since version 3.99   previous   top   next
